Obsidian Publish V2

7 min read

Old: https://vttc08.github.io/obsidian-notes
New: https://vttc08.github.io/obsidian-notes-v2
Repo: https://github.com/vttc08/obsidian-notes-v2
Also on Cloudflare Pages
VPS Deployment

Current Issues

My previous obsidian-publish implementation has several limitations that need addressing:

Publishing Constraints

  • Single-device dependency: Publishing only works from my desktop with specific Windows/PowerShell setup
  • Complex environment requirements: Requires NodeJS, Quartz, correct Git repo location, and SMB share access, which is complex to setup on new devices
  • Platform limitations: No support for non-Windows devices, mobile phones, or shared computers

Technical Issues

  • File handling: Copy scripts don’t handle file deletions properly
  • No live preview: Local server serves as the only preview method
  • Date metadata loss: GitHub Pages builds lose filesystem dates since I don’t use frontmatter, causing incorrect “recent notes” ordering
  • Fragile workflow: Entire process breaks if desktop is unavailable or environment changes

These limitations make note publishing inflexible and unreliable, especially when away from my primary desktop setup.

Proposed Plans

To address these limitations, I’m rebuilding the publishing workflow with server-side processing using Docker and SSH for universal access.

Core Architecture:

  • Server-side publishing: All build processes run on a dedicated Linux server with Docker
  • Universal access: Any device with SSH or web browser can trigger publishing
  • Docker containerization: Handles NodeJS/Quartz environment without local dependencies

Access Methods:

  1. SSH command: Simple one-liner from any terminal: ssh server "deploy.sh"
  2. Obsidian Shell: Direct integration for desktop publishing
  3. Web-based terminal: Using webtop Docker container for browser-based access
  4. Mobile SSH: Terminal apps for mobile publishing

Key Benefits:

  • Device independence: No platform-specific requirements
  • Always available: Server runs 24/7, no desktop dependency
  • Simplified setup: Single server configuration vs. per-device setup
  • Reliable workflow: Containerized environment prevents configuration drift

The webtop solution provides a full Obsidian environment in browsers, though mobile KasmVNC is unusable, but SSH terminal access works fine.

Quartz

The setup and customization of Quartz has been the same, here are the summary.

Installation

Install NodeJS and Quartz. I opted to install it in WSL rather than Windows itself to mimic a Linux environment. The instructions for starting with Quartz.

Changes

Added my own list of notes to ignore. There are 2 ignore types in Quartz, and adding notes to both is nessecary

  • .gitignore: repository, it will prevent the file from tracked by git
  • quartz.config.ts: quartz, quartz will not build the website for these notes

List spacing plugin

  • by default, even using HardLineBreak, there are some issues with how Obsidian and Quartz looks with line breaks after a markdown list.

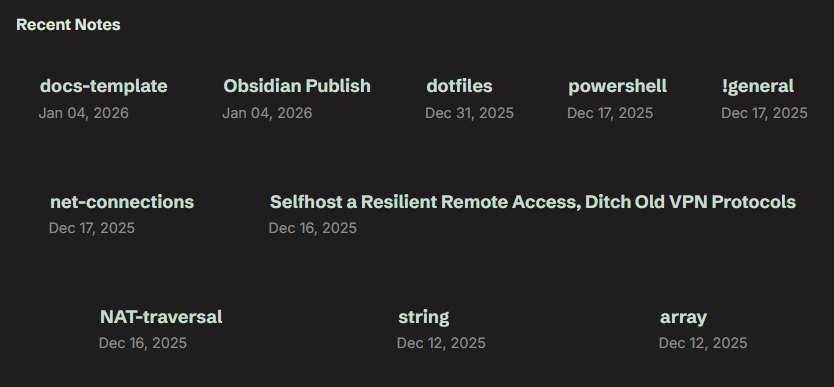

Display Recent Notes on Home Page

  • I used CSS flex properties to have the homepage display a responsive layout with multiple columns

Deployment Issues

I used the official recommended method to publish to Github pages, with a custom Github action that copies built HTML to my VPS for CI/CD demonstration. For home server deployment, I copy build output to an Nginx folder integrated with my existing reverse proxy.

Date Issue

Recent notes display randomly on Github Pages and VPS, but correctly on my home server. Since I don’t use frontmatter dates, Quartz relies on filesystem timestamps, which are lost when committing to Github, everything inherits the commit date instead of original modification time.

Rather than retrofitting frontmatter dates across all notes, I solved this using ghp-import to build locally with preserved filesystem dates, then push static HTML to the gh-pages branch for both Github and Cloudflare Pages to serve.

Docker Issue

Testing the official Quartz image, I came across several challenges. Using user: ${PUID}:${PGID} for proper file ownership caused errors, requiring this patch.

Yet this only worked on WSL, because my bind mount consists of node_modules. On my Linux server, bind mounting overwrote the container’s node_modules with my empty host directory, breaking dependencies. Without bind mounting, the user directive failed as source code became root-owned. The solution: run as root and use chown -R $PUID:$PGID on the public folder afterward.

What Didn’t Work

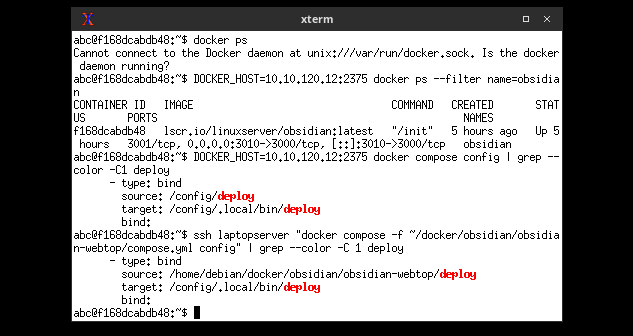

The webtop image came with Docker command preinstalled, I thought I could run my Docker commands directly. By default, the Docker socket is not expose to the container, but using docker-socket-proxy, I was able to safely expose Docker to webtop. However, Docker parses compose file locally, relative paths such as ./ or ~/ would resolve to the path in the container, rather than the host.

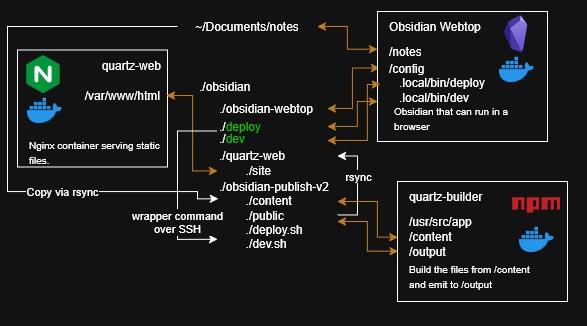

My Architecture

So what is the architecture that balances all the compromises. Here is the tree structure.

├── obsidian-notes-v2/
│   ├── compose.yml
│   ├── deploy.sh
│   ├── dev.sh
│   ├── Dockerfile
│   ├── content/
│   ├── public/
│   ├── quartz/
│   │   ├── <project_source_code>
│   ├── quartz.config.ts
│   ├── quartz.layout.ts
├── obsidian-webtop/
│   ├── compose.yml
│   ├── deploy
│   ├── dev
│   ├── Documents/
│   │   └── ssh/
│   │       └── openssh_keys/
└── quartz-web/
    ├── site/
    ├── compose.yml
    └── nginx.conf

In the master obsidian folder, I have 3 folder

  • obsidian-note-v2 - git repo where it keep tracks of source code related changes, as well as the working directory for deployment related tasks
  • obsidian-webtop - project folder for Docker obsidian webtop
  • quartz-web - Nginx docker container for serving static files

There are few possible ways to trigger deployment

  • by using obsidian-shell
  • using webtop in a web browser, opening terminal and type deploy
  • manually SSH into the server and running deploy.sh located in obsidian-notes-v2

In all cases, the deploy.sh is the entrypoint for everything. Here are the steps it occurs when deploy.sh is triggered

  1. change into obsidian-notes-v2 since all Docker and git repo related files are here
cd $(dirname ${BASH_SOURCE[0]})
  1. run rsync command to copy my notes from my vault (also saved in Linux server) to content/, this step is needed so I can keep track of it using git, it deletes any files that was deleted in the vault
rsync -ahP --delete ~/Documents/notes/ ./content/
  1. use Docker to run an ephemeral container and build the site using quartz, the container uses content/ folder consisting of markdown files and generated static files in public/
docker compose run --rm quartz-builder
  1. run ghp-import which automatically commit changes in public/ into gh-pages
uv un ghp-import public/ -p
  1. synchronize the files from public/ into production Nginx folder
rsync -ahP --delete --remove-source-files ./public/ ../quartz-web/site/
  1. git related tasks such as add, commit and push

Docker Compose

The compose file does the heavy lifting when building the site. It consists of 3 sections

  • quartz-service - general environment and information about the quartz container
  • quartz-builder - building the HTML from markdown
  • quartz-dev - development server

The compose file uses environment variables QUARTZ_OUTPUT_DIR|CONTENT_DIR so the npx command can be consistent, as well as PUID/PGID so the chown can ensure the emitted file are correct permission despite the container is running as root. The standardized configuration allows for flexibility, I simply have to change the bind mount, add optional read-only and the build will run stateless-ly.

Dev Server

To sort out live preview, I’ve also added a dev server. It uses --serve to live preview the site. However, Websocket doesn’t work, even though it works outside of Docker. To run it ephemerally as well as using port forwarding, this command is needed.

docker compose run --rm --name quartz-dev --service-ports quartz-dev

To add convenience into the webtop container. I’ve created deploy and dev in obsidian-webtop/ which are simply wrappers for deploy.sh and dev.sh and SSH, then I used bind mount to ./deploy:/config/.local/bin, so these scripts are in the container’s shell PATH, and I can simply type deploy to execute the desired script over SSH. Similarly, in obsidian-shell, the command for deployment is much easier. Here’s the original Powershell script

sleep 0.5
$dg = [Environment]::GetFolderPath("MyDocuments") + "\Projects\obsidian-publish"
function cpy{
  param ($src, $dest, $opt)
  robocopy $src $dest /E /NDL /NJH /XF *.py *.ipynb $opt
}
cpy . "$dg\content"
cd $dg
npx quartz build
cpy public/ "\\10.10.120.12\docker\quartz-web\site" /NFL
if (${{_github}}) {
  npx quartz sync -m "${{_commit}}"
  echo "Published to github."
} else { echo "Process is done." }

And the updated script, which works on any computer

ssh -t laptopserver "~/docker/obsidian/obsidian-notes-v2/deploy.sh"

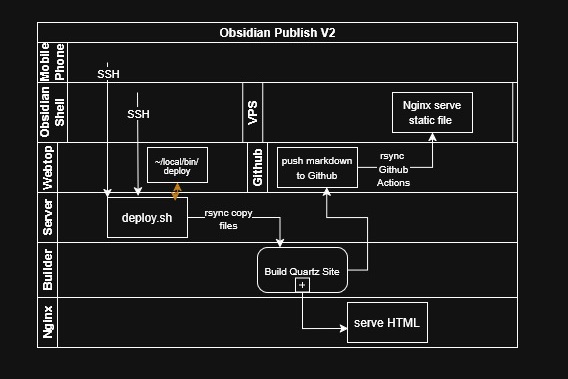

Here is a diagram showing the workflow, which may be easier to understand.
